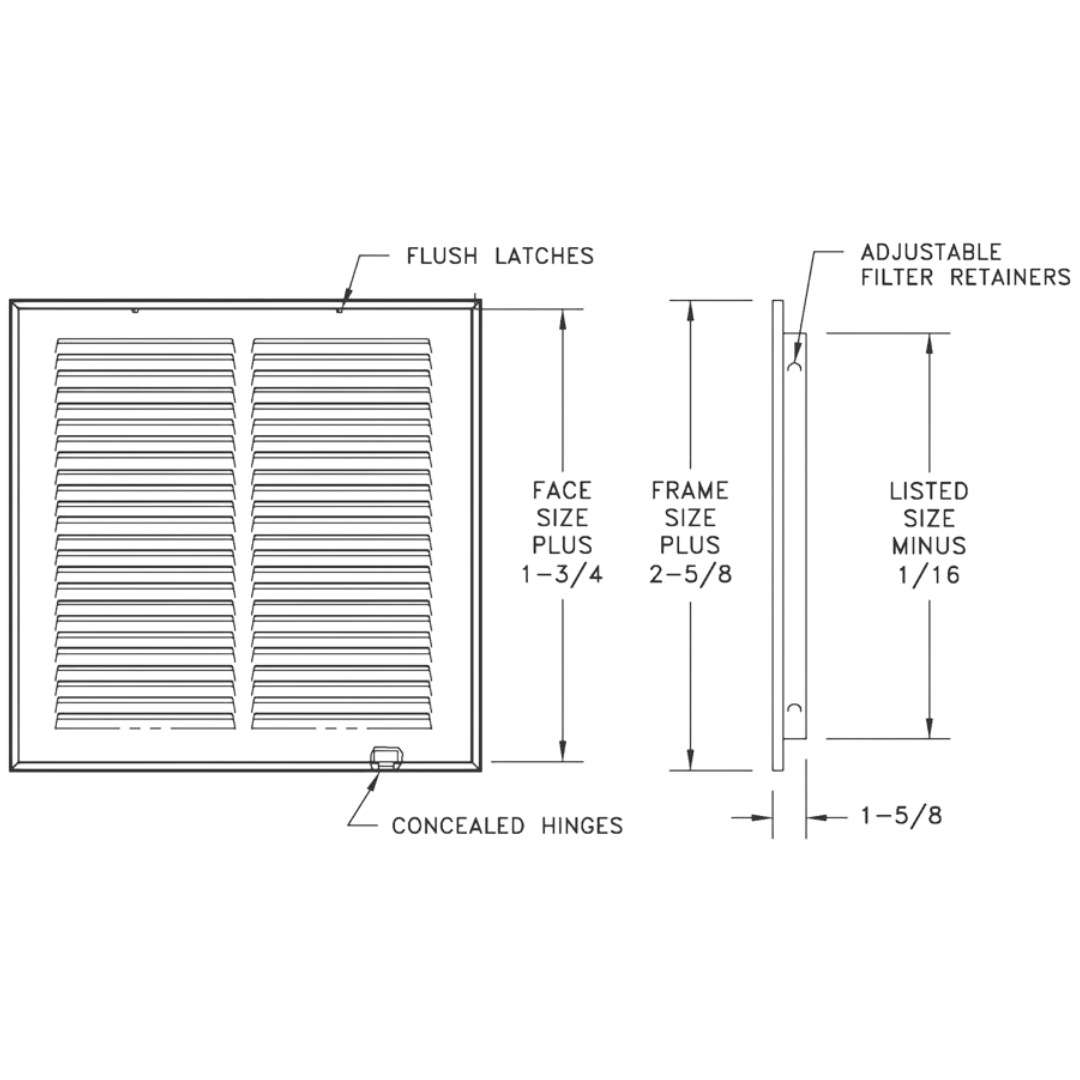

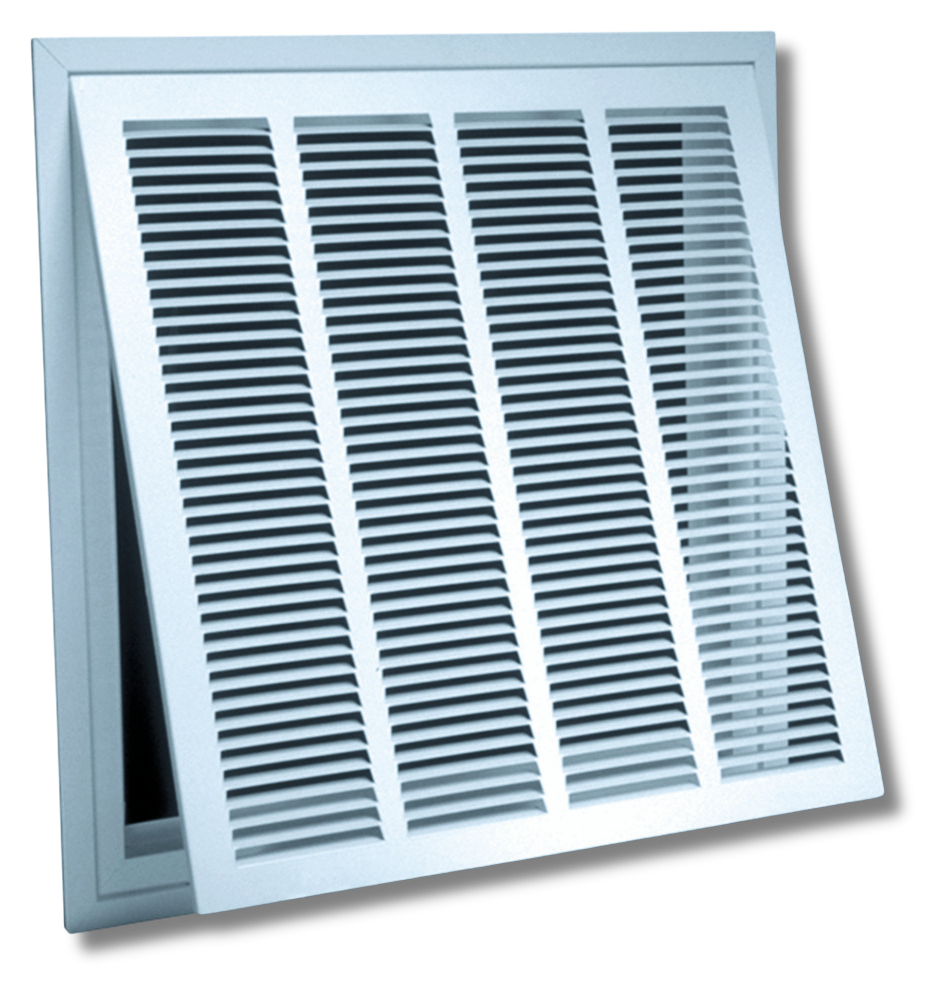

RAF - Stamped-Face Return Air Filter Grille
- Steel construction
- For sidewall or ceiling application
- 1/2-inch spaced fins
- Removable hinged face for easy installation and cleaning
- Uses nominal 1-inch-thick filters (not included)
- White durable finish
Available Sizes (inches)
| HEIGHT | WIDTH | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10" | 12" | 14" | 16" | 18" | 20" | 24" | 25" | 30" | |
| 6" | • | • | |||||||
| 8" | • | • | |||||||
| 10" | • | • | • | • | |||||
| 12" | • | • | • | • | • | ||||
| 14" | • | • | • | • | • | • | |||
| 16" | • | • | • | • | • | ||||
| 18" | • | • | • | ||||||
| 20" | • | • | • | • | • | • | • | • | • |
| 24" | • | • | • | • | • | • | • | ||
| 25" | • | • | • | • | |||||
| 30" | • | • | • | • | • | • | • | ||
