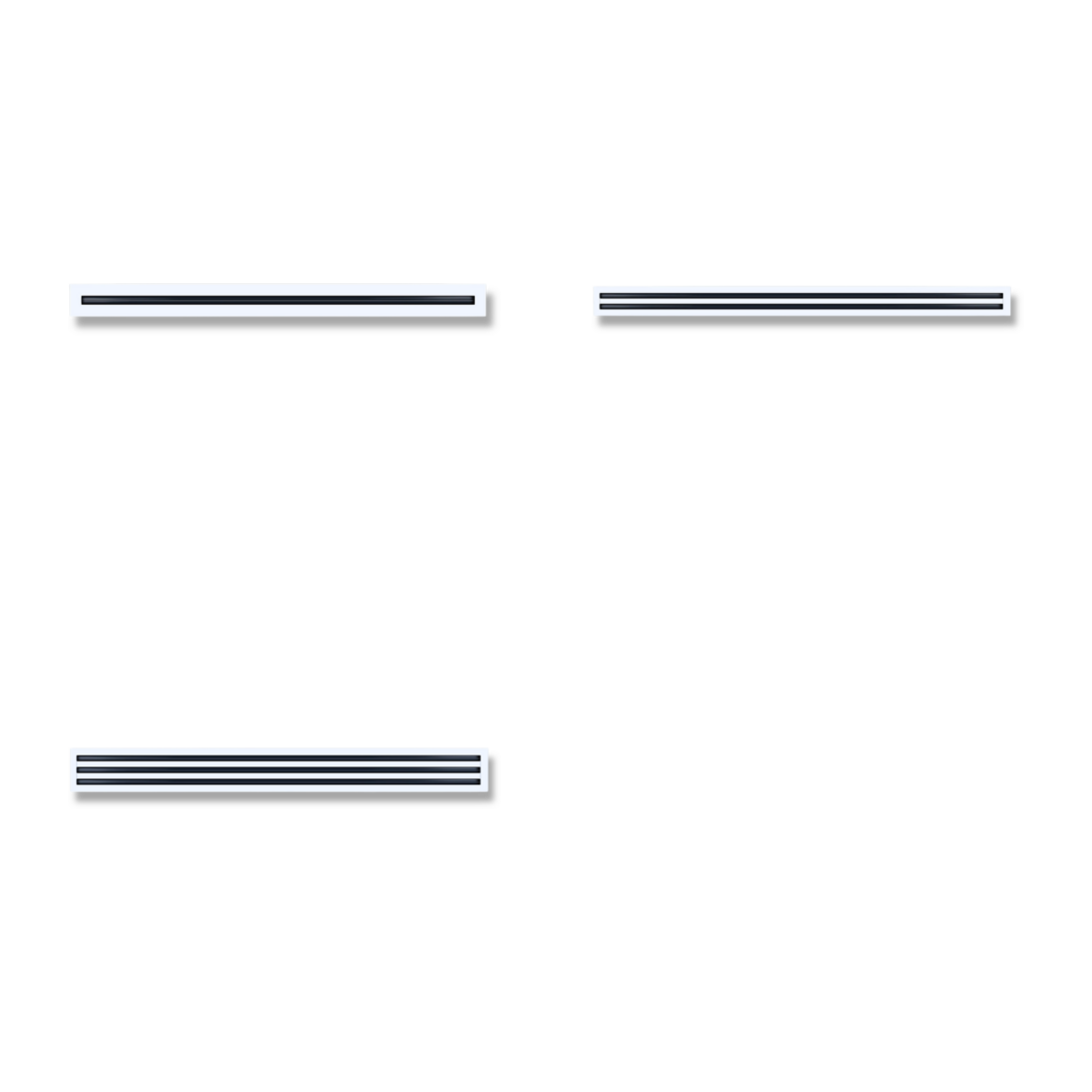

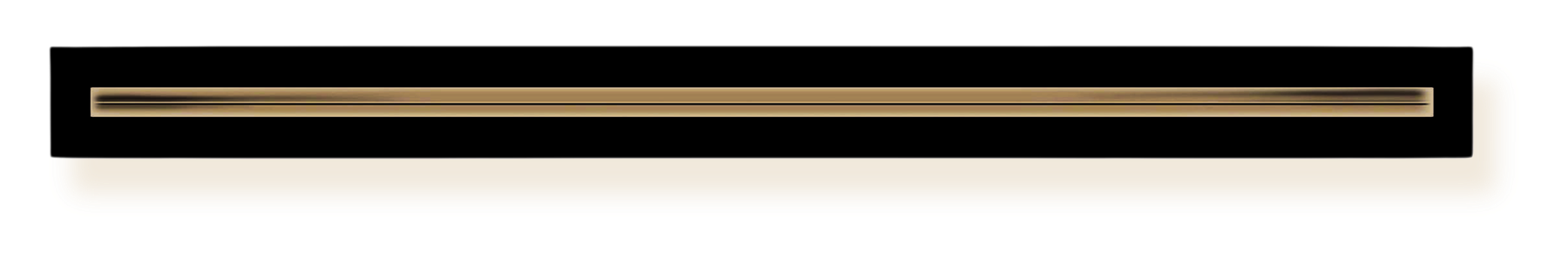

LID - Aluminum Linear Slot Diffuser
- Extruded aluminum construction
- Available with or without end caps
- Available with or without adjustable pattern control
- Maximum one-piece length 72 inches
- Longer lengths use multiple sections with splices
- Mounting brackets and screws included
- White durable finish
Ordering Options
| REFERENCE | Codes / Range |
|---|---|
| Number of slots | 01 to 04 |
| Slot width | 127 = 1/2 in.; 190 = 3/4 in.; 250 = 1 in. |
| Length | 12 to 999 in. |
| End cap | 0C = none; 1C = one side; 2C = both sides |
| Type | D = diffuser only; P = diffuser with pattern control |
