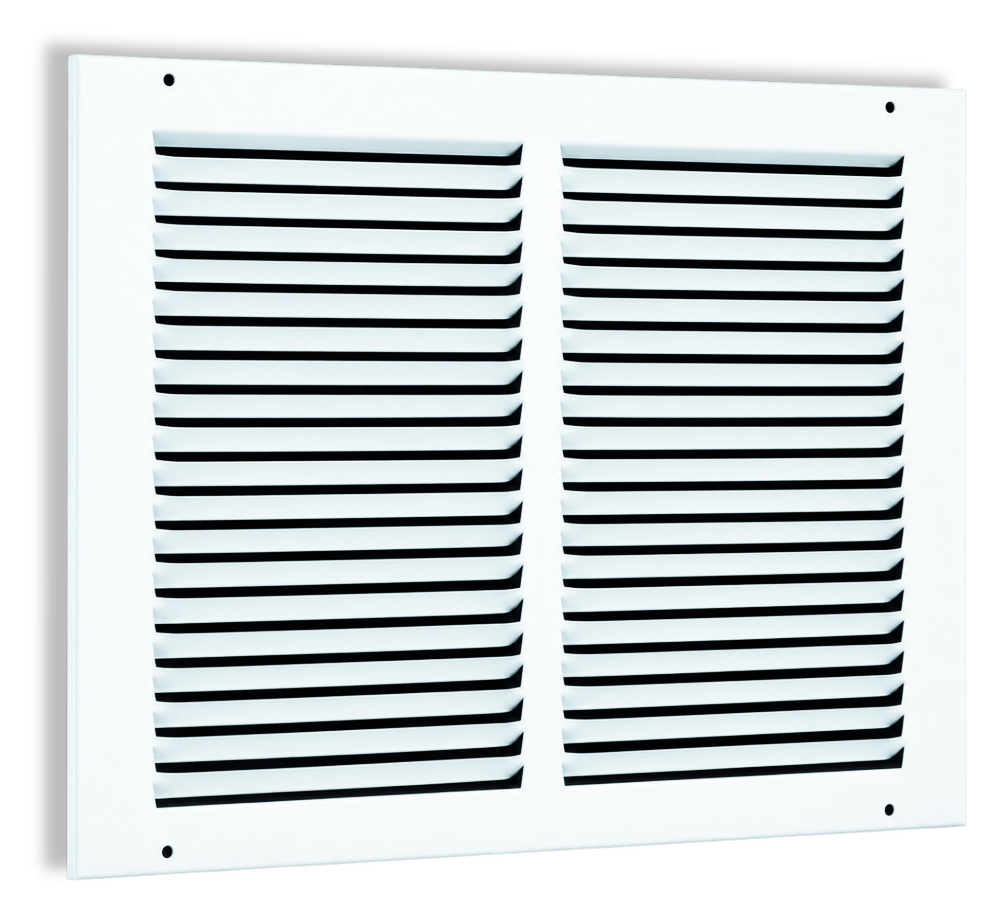

RG - Stamped-Face Return Air Grille
- Steel construction
- For sidewall or ceiling application
- 1/2-inch spaced fins
- White durable finish
Available Sizes (inches)
| HEIGHT | WIDTH | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | 30" | |
| 4" | • | • | • | • | • | • | |||||
| 6" | • | • | • | • | • | • | • | • | • | ||
| 8" | • | • | • | • | • | • | • | • | • | • | |
| 10" | • | • | • | • | • | • | • | • | • | • | • |
| 12" | • | • | • | • | • | • | • | • | • | ||
| 14" | • | • | • | • | • | • | • | • | • | • | |
| 16" | • | • | • | • | • | • | • | • | |||
| 18" | • | • | • | • | |||||||
| 20" | • | • | • | • | • | • | |||||
| 24" | • | • | • | • | • | • | • | • | |||
| 25" | • | • | • | • | • | • | |||||
| 30" | • | • | • | • | • | • | • | ||||
